File:Servo sg90.JPG
No higher resolution available.
Micro Servo SG90 by TowerPro The SG90 has plastic nylon gears
http://www.towerpro.com.tw/product/sg90-analog/
Specifications:
- Weight: 9g

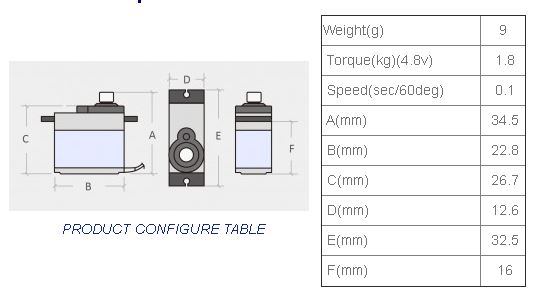

- Dimension: 23×12.2x29mm
- Stall torque: 1.8kg/cm(4.8v)
- Gear type: POM gear set
- Operating speed: 0.12 sec/60degree(4.8v)
- Operating voltage: 4.8v
- Temperature range: 0℃_ 55℃
- Dead band width: 1us
- Power Supply: Through External Adapter
- servo wire length: 25 cm
- Servo Plug: JR (Fits JR and Futaba)
